When you turn your key or press the start button, your car’s fuel system springs into action, delivering fuel to your engine at exactly the right time, pressure, and volume. This major system consists of more than just a fuel tank and pump. It’s a complex network of interconnected components.
Keep reading to learn about the essential fuel system parts that are found in modern vehicles, what their functions are, and how they all work together to keep your engine running at optimal efficiency.
See Also: 140+ Parts of a Car (with Pictures)
Parts of a Fuel System in a Car
1) Fuel Tank
The fuel tank is your vehicle’s storage reservoir, typically located beneath the rear seats or trunk area. Made from corrosion-resistant materials like plastic or steel, it safely contains gasoline until it’s needed by the engine.
Modern tanks include baffles to prevent fuel sloshing during acceleration and braking, which helps maintain consistent fuel delivery. For safety, tanks feature ventilation systems that release pressure buildup and prevent vacuum formation.
The average tank holds 12-18 gallons (45-68 liters), though capacity varies widely between vehicle types. For instance, compact cars typically hold 10-14 gallons, mid-size crossovers hold 15-18 gallons, large SUVs hold 22-28 gallons, and pickup trucks hold 22-36 gallons on average.
See Also: 5 Symptoms of Water in Your Gas Tank
2) Fuel Level Sensor
The fuel level sensor is mounted inside your fuel tank as part of the fuel pump assembly. It consists of a float arm connected to a variable resistor that changes electrical resistance as fuel levels rise and fall. This changing resistance sends signals to the fuel gauge in your dash, providing real-time information about remaining fuel.
Most sensors use a simple float mechanism similar to a toilet tank, though modern vehicles may employ more accurate electronic sensors. When this component fails, your gauge may read incorrectly or not at all, potentially leaving you stranded with an empty tank despite what your gauge shows.
3) Fuel Pump
The fuel pump draws fuel from your tank and delivers it to the engine under pressure. In most modern vehicles, it’s an electric pump located inside the fuel tank (called an “in-tank” pump), though older vehicles might have mechanical pumps mounted on the engine.
Electric pumps typically operate at 30-60 PSI (pounds per square inch) and are powered by your vehicle’s electrical system. When you turn the key or press the start button, you’ll often hear a brief whirring sound as the pump pressurizes the system before starting.
Fuel pumps are designed to run continuously while driving and are cooled by the fuel surrounding them. Most pumps last 100,000+ miles, but running with low fuel levels can cause premature failure by reducing cooling.
4) Fuel Filter
The fuel filter removes any contaminants that could damage your engine or fuel injectors. Located either along the fuel line, inside the tank with the pump assembly, or sometimes both locations, it traps dirt, rust, and other particles as small as 10 microns.
In older vehicles, the fuel filter is typically a replaceable cartridge mounted underneath the car or in the engine bay. However, many modern vehicles integrate the filter into the fuel pump assembly inside the tank, making it less accessible for DIY replacement.
Filters gradually become restricted over time, causing reduced fuel flow and engine performance. Most manufacturers recommend replacement every 30,000-75,000 miles for external filters, though this varies by vehicle.
5) Fuel Lines
Fuel lines are the pathways that transport fuel throughout the vehicle’s fuel system. Made from durable materials like steel, aluminum, or reinforced rubber, these tubes connect various parts of the fuel system. They provide a secure and leak-free route to deliver fuel while withstanding high pressure and the corrosive nature of gasoline.
Metal lines are typically used for longer straight runs, while flexible rubber hoses accommodate engine movement and vibration. Modern vehicles use specialized quick-connect fittings at junction points for easier service. Fuel lines must remain free of obstructions, kinks, and damage to maintain proper flow.
6) Fuel Rail
The fuel rail is a distribution manifold that delivers pressurized fuel from the fuel lines to the injectors. It connects the fuel pump to the injectors and houses the fuel rail pressure sensor that communicates with the engine control unit.
Its primary function is making sure that fuel maintains the necessary pressure at injection and minimizing pressure fluctuations between individual injections.
Typically mounted directly on the engine intake manifold, the fuel rail provides a mounting point for the injectors while maintaining consistent fuel pressure across all cylinders. Modern fuel rails often include integrated pressure dampers to smooth out pressure pulses created when injectors open and close.
In performance applications, larger-diameter fuel rails provide additional fuel volume (a “reservoir effect”) that helps prevent fuel starvation during high demand situations.
7) Fuel Pressure Regulator
The fuel pressure regulator maintains optimal fuel pressure throughout the fuel system. It works to maintain proper and consistent pressure for the injectors during various driving conditions. Pressure that’s too high can cause misfiring and increased emissions, while low pressure can result in poor performance and difficult starting.
Its job is to maintain consistent fuel pressure across the fuel injector by regulating how much fuel returns to the tank. Most regulators are vacuum-referenced, meaning they adjust fuel pressure in response to engine load changes.
Typically mounted at the end of the fuel rail in return-style systems or near the fuel pump in returnless systems, this component helps ensure that injectors receive fuel at the precise pressure needed for proper atomization under all operating conditions.
8) High-Pressure Fuel Pump (For Direct Injection)

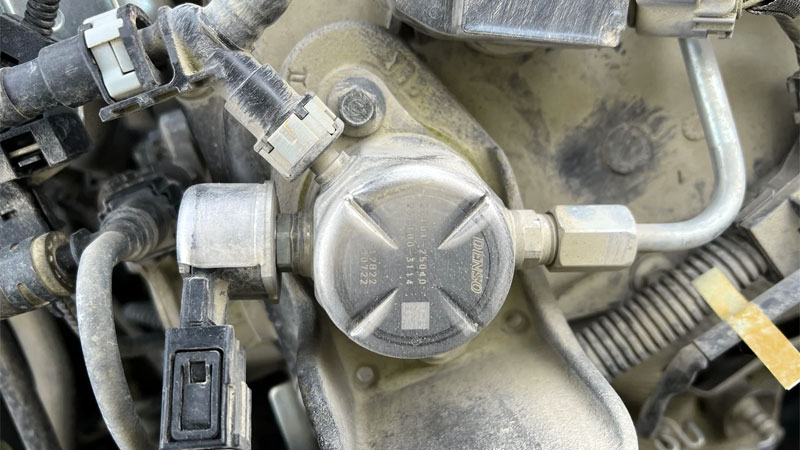

The high-pressure fuel pump is found specifically in direct injection engines, a technology that has become increasingly common in newer vehicles but isn’t universal.
In traditional fuel injection, the standard low-pressure pump (30-60 PSI) is sufficient, but direct injection systems require much higher pressures (up to 2,000+ PSI) to spray fuel directly into the combustion chamber rather than into the intake port.
This mechanical pump is typically driven by a lobe on the engine’s camshaft and is positioned between the low-pressure fuel pump and the fuel rail. Unlike the primary fuel pump, it produces pressure proportional to engine speed.
Direct injection systems improve both power output and fuel efficiency by enabling finer fuel atomization and more precise fuel delivery timing, which is why they’ve become popular in modern vehicles. It essentially allows better performance and economy.
9) Throttle Body

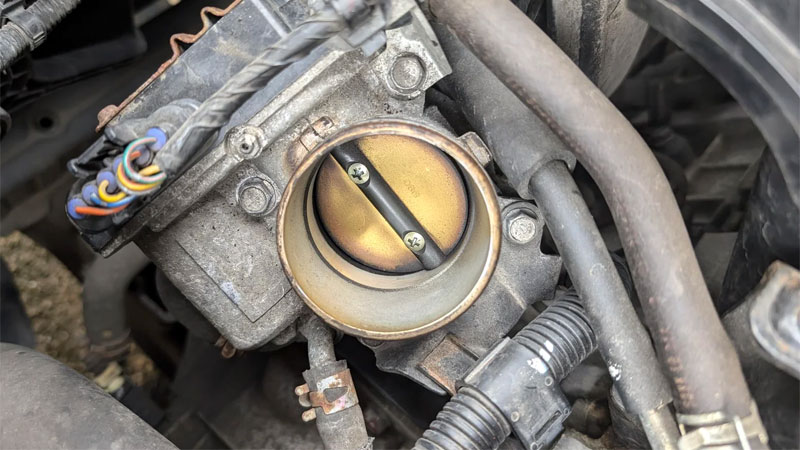

The throttle body controls the amount of air entering the engine, which directly affects how much fuel is needed. Located between the air intake and the intake manifold, it consists of a housing containing a pivoting throttle plate (butterfly valve) that opens and closes in response to accelerator pedal movement.
In modern vehicles, this component is electronically controlled rather than mechanically linked to the accelerator pedal, allowing the engine control unit to precisely manage airflow based on multiple sensors.
The throttle body houses the idle air control valve in many designs, which maintains stable idle speed by bypassing the throttle plate when it’s closed. Once your vehicle gets to the 60,000 mile range, regular cleaning of the throttle body is important as carbon deposits can accumulate over time, affecting airflow and causing rough idle or hesitation.
Related: Common Signs of a Bad or Dirty Throttle Body
10) Return Line (For Non-Returnless Systems)

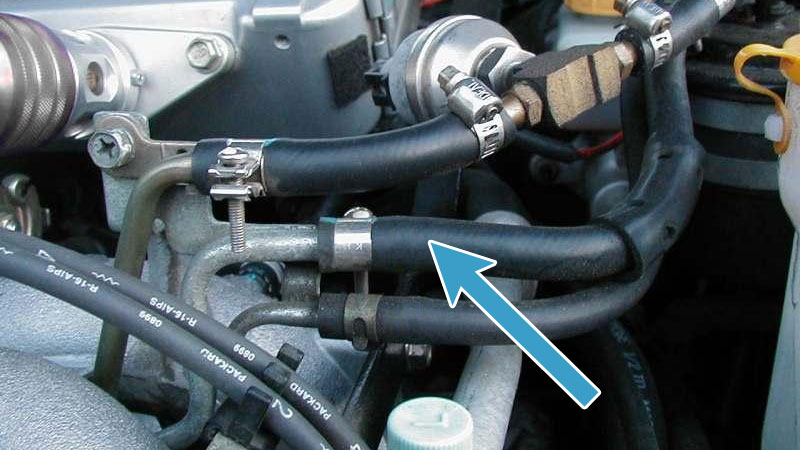

The return line is a key component in traditional (non-returnless) fuel systems, providing a pathway for excess fuel to flow back to the fuel tank. Running parallel to the supply line but in the opposite direction, it connects from the fuel pressure regulator back to the fuel tank.
This line typically operates at much lower pressure than the supply line and is usually smaller in diameter. The return system helps maintain consistent fuel temperature by constantly circulating fuel rather than allowing it to heat up in the engine bay.
Modern returnless fuel systems eliminate this component by incorporating the pressure regulation at the fuel tank or using electronic pressure control. Return lines are typically made from the same durable materials as supply lines to withstand exposure to fuel and environmental conditions.
11) Fuel Injectors
Fuel injectors are electronically controlled valves that spray precisely metered amounts of fuel into the engine. Positioned either in the intake ports (port injection) or directly into the combustion chambers (direct injection), these solenoid-operated devices open when energized by the engine control unit.
Modern injectors can cycle thousands of times per minute, delivering fuel in an atomized spray pattern optimized for efficient combustion. The injector’s spray pattern, flow rate, and timing are critical for proper engine performance and emissions control.
Most injectors have a specific flow rating measured in cubic centimeters per minute (cc/min) or pounds per hour (lb/hr), which must be matched to the engine’s requirements. Injector maintenance is minimal, but fuel quality is important as deposits can form on injector tips, affecting spray patterns and engine performance.
12) Carburetor (Older Cars)
The carburetor is the fuel delivery system used in virtually all gasoline-powered vehicles manufactured before the mid-1980s, when electronic fuel injection began to dominate the market. Mounted on top of the intake manifold, this mechanical device mixes air and fuel in the correct ratio for combustion without using electronic controls.
It operates on the Venturi principle. As air passes through a narrowed passage, it speeds up and creates a pressure drop that draws fuel from small jets. Carburetors contain multiple circuits for different operating conditions including idle, low-speed, high-speed, and acceleration.
While simpler than fuel injection systems, carburetors require occasional adjustment and are more sensitive to altitude and temperature changes. Though largely obsolete in modern vehicles due to emissions and efficiency requirements, carburetors are still found in some small engines, classic cars, and specialized racing applications.
