Every time you hit a pothole without spilling your coffee or take a corner without tipping over, you can thank your car’s suspension system. It’s what keeps your ride comfortable, your tires on the road, and your vehicle stable through turns.
Here’s a break down of the main parts of a suspension system, their purpose, and what happens when they start to wear out.
See Also: 142 Parts of a Car (w/ Pictures)
Suspension System Components
1) Springs
Springs support your vehicle’s weight while absorbing road impacts. When you drive over a bump, springs compress to absorb the shock, then return to their original shape, preventing those impacts from reaching you in the cabin.
Most cars and pickups use coil springs (spiral-shaped metal that compresses directly), while heavy duty trucks often have leaf springs (stacked metal strips that flex under load) which better handle higher payloads and towing capacities.
Some vehicles use torsion bars that twist to absorb impacts, and luxury models might have air springs that use compressed air instead of metal.
When springs wear out, your car may sit lower on one side, bottom out over bumps, or bounce excessively. You might hear clunking noises when driving over rough roads. Springs typically last many years but can fail from rust, overloading, or extreme road conditions.

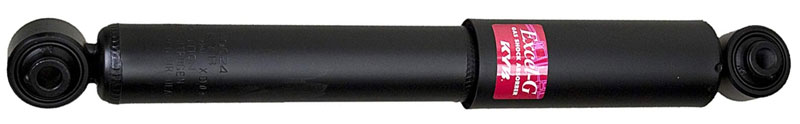

2) Shock Absorbers
Shock absorbers (aka: shocks) work alongside springs to control their movement. Without shocks, your car would continue bouncing after hitting a bump as the springs compress and release. Shocks use hydraulic fluid to convert this kinetic energy into heat, dampening the spring’s motion and keeping your tires in contact with the road.
Most vehicles have a shock absorber mounted near each wheel. Inside the shock, a piston moves through oil as the suspension travels up and down. Small holes in the piston create resistance, slowing the suspension movement.
Failed shock absorbers lead to excessive bouncing, nose-diving during braking, and swaying through turns. You might notice uneven tire wear or fluid leaking from the shock body. Modern shocks typically last 50,000-100,000 miles depending on driving conditions and should be replaced in pairs.
See Also: Double Wishbone vs MacPherson Suspension (Pros/Cons)

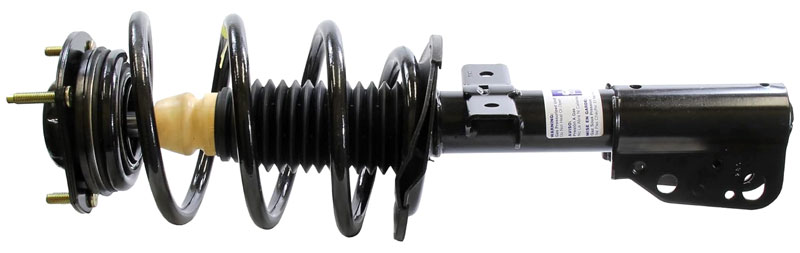

3) Struts
Struts combine the functions of shock absorbers with structural support. While shocks only dampen movement, struts are integral load-bearing components of your suspension system. They attach directly to the chassis and steering knuckle, providing a mounting point for the coil spring.
Most modern front-wheel-drive vehicles use struts in the front suspension, though some use them all around. The strut assembly includes a coil spring, shock absorber, and upper mounting plate that connects to the vehicle’s body.
Signs of failing struts include excessive bouncing, knocking noises over bumps, and alignment issues. A damaged strut can affect steering, braking, and overall vehicle stability. Replacing struts is more complex than changing shocks and often requires an alignment afterward.
4) Control Arms

Control arms connect your vehicle’s frame to the steering knuckles and wheel hubs, allowing wheels to move up and down while maintaining proper alignment. Most cars have upper and lower control arms in an A-shape (hence their alternate name, “A-arms”), with bushings at the frame end and ball joints at the wheel end.
These components support the vehicle’s weight while enabling suspension movement and absorbing road forces. Control arms keep your wheels properly positioned during travel over bumps and through turns, directly affecting handling, stability, and tire wear.
Failed control arms create clunking noises, excessive vibration, and uneven tire wear. You might notice your vehicle pulling to one side or wandering during braking.
Control arms can bend from impacts like hitting curbs or potholes, and their bushings wear out from constant flexing, typically requiring replacement after 100,000+ miles.
Related: 11 Parts of a Brake System
5) Ball Joints

Ball joints are spherical bearings that connect control arms to steering knuckles, working like the ball-and-socket joints in your shoulder. They allow for pivoting movement in multiple directions while maintaining a secure connection between suspension components.
Most vehicles have upper and lower ball joints at each front wheel, though some designs use just one per side. The ball joint consists of a steel ball inside a lubricated socket, typically covered by a protective boot. This design allows your wheels to turn and move up and down simultaneously.
Worn ball joints create clunking or popping noises, especially when turning or going over bumps. Uneven tire wear or steering that feels loose are also symptoms. A completely failed ball joint can cause wheel detachment (obviously incredibly dangerous). Replacement intervals vary, but inspection is recommended every 50,000 miles.

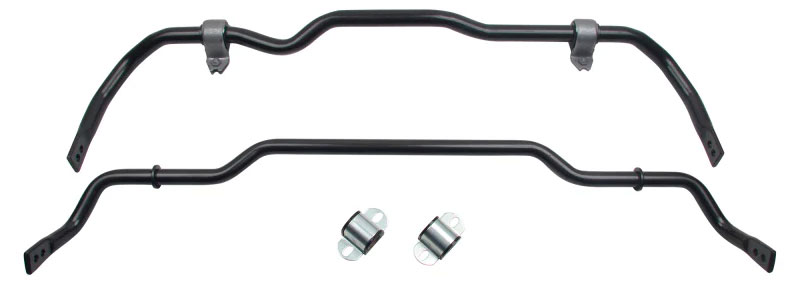

6) Sway Bars/Anti-Roll Bars

Sway bars (also called anti-roll bars) reduce body roll during cornering. These simple yet effective components are metal rods that connect the left and right sides of your suspension, resisting the natural tendency of your vehicle to lean outward when turning.
Most vehicles have sway bars at both the front and rear suspensions. When you take a corner, the outside suspension compresses while the inside extends. The sway bar twists to resist this motion, keeping your car more level and improving stability. Larger diameter sway bars provide more resistance to body roll.
Failed sway bars or worn bushings allow excessive leaning in turns, reducing handling precision and potentially causing tire wear. Common symptoms include increased body roll, clunking noises when turning, or a disconnected feeling in corners. Sway bar links and bushings typically wear out before the bar itself and are relatively inexpensive to replace.
7) Bushings

Bushings are small rubber or polyurethane components that provide cushioning between metal parts throughout your suspension. They allow controlled movement while absorbing vibration and road noise that would otherwise transfer to the cabin.
You’ll find bushings at control arm mounting points, sway bar connections, shock absorber mounts, and other suspension joints. They act as flexible buffers that reduce metal-on-metal contact while allowing necessary movement between components. Polyurethane bushings last longer but transmit more noise than rubber ones.
Worn bushings create squeaking or creaking noises, especially over bumps or during steering. You might notice sloppy handling, unusual vibrations, or alignment issues that return shortly after being corrected. Bushings deteriorate from age, heat, and exposure to road chemicals, typically requiring replacement after 80,000-100,000 miles.
8) Tie Rods
Tie rods connect your steering rack to the steering knuckles, transmitting the turning motion from your steering wheel to your actual wheels. Each tie rod consists of an inner and outer end, with the inner connecting to the rack and the outer to the steering knuckle.
These components have threaded sections that allow for precise adjustment during wheel alignments. When you turn your steering wheel, the rack pushes or pulls the tie rods, which then move the wheels in the desired direction. Their design allows them to maintain proper wheel alignment while accommodating suspension movement.
Worn tie rods create looseness in steering, causing your car to wander or require constant steering corrections. You’ll start to notice uneven or feathered tire wear, steering wheel play, or clunking when turning. Damaged tie rods significantly impact steering precision and should be replaced quickly (typically after 70,000-100,000 miles).
9) Frame/Subframe
The frame or subframe serves as the foundation for your entire suspension system. It provides rigid mounting points for control arms, struts, and other components while absorbing and distributing forces from the road.
Most modern unibody vehicles use subframes (separate structures bolted to the main body) to support the engine and suspension components. These designs improve noise isolation while allowing for more precise suspension geometry. Pickup trucks and some SUVs still use full frames that run the entire length of the vehicle.
Damaged frames from accidents or severe rust can affect suspension alignment, creating handling issues that alignment services can’t fix. While frames rarely need replacement under normal conditions, subframe bushings can deteriorate over time, causing excessive vibration, alignment issues, and increased road noise in the cabin.
10) Wheels and Tires
Wheels and tires are the only suspension components that actually contact the road. Wheels (the metal rims) provide structural support, while tires create the essential friction needed for acceleration, braking, and cornering.
Tires act as the first line of defense against road impacts, with their flexible sidewalls and air cushion absorbing small bumps before they reach other suspension components. Different tire designs prioritize various performance aspects: all-season tires balance wet/dry traction and longevity, while performance tires emphasize grip at the expense of wear.
Problems include improper inflation (affecting handling and wear), damage from impacts (creating vibrations or pulling), and tread wear (reducing traction). Wheels can bend from pothole impacts or develop cracks, causing vibrations and potentially dangerous air leaks.
Related: Best Tire Brands for Every Season
