Each time your engine purrs to life and runs quietly as you cruise down the highway, your exhaust system is doing its job. This network of pipes and components works hard to keep harmful gases away from the cabin, optimize engine performance, and keep your car running as quietly (in most cases) and efficiently as possible.
Here’s a breakdown of the key parts of your car’s exhaust system, their purpose, and what can happen when they start to wear out or fail.
See Also: 140+ Different Parts of a Vehicle (w/ Pictures)
Exhaust System Components
1) Exhaust Manifold/Header
The exhaust manifold is where it all begins. Mounted directly to the engine’s cylinder head, this component collects exhaust gases from multiple cylinders into a single pipe.
Most factory manifolds are made of cast iron, which is durable but heavy. Performance-oriented vehicles might use headers instead, which are typically made from stainless steel tubes that are designed to improve exhaust flow and boost horsepower.
The manifold’s job is to carry waste gases from the combustion chamber away from the engine during the exhaust stroke. These gases are hot and under high pressure as they leave the engine.
When an exhaust manifold fails, you’ll often notice a ticking or tapping noise that gets louder as the engine warms up. This happens because the intense heat cycles cause the manifold to crack or warp over time. You might also smell exhaust fumes in the cabin, which is a serious safety concern that needs immediate attention.
2) Oxygen (O2) Sensors
Oxygen sensors are monitors of your exhaust system. These small devices measure the amount of unburned oxygen in your exhaust, allowing your car’s computer to adjust the fuel-air mixture for optimal performance and efficiency.
Most vehicles have at least two O2 sensors (an “upstream” sensor between the engine and catalytic converter, and a “downstream” sensor after the converter). Newer cars often have four or more sensors for more precise control. They work by generating a voltage signal that changes based on oxygen content, helping your car maintain the ideal 14.7:1 air-fuel ratio.
When an O2 sensor fails, your check engine light will usually come on, fuel economy will drop, and your engine might run rough or hesitate during acceleration.
3) Exhaust Gas Recirculation (EGR) Valve
The EGR valve is an emissions control device that helps reduce nitrogen oxide (NOx) emissions. It works by recirculating a portion of exhaust gases back into the engine’s intake manifold, lowering combustion temperatures and reducing the formation of harmful NOx gases.
Modern EGR systems are electronically controlled and use sensors to determine when recirculation should occur. The system typically operates during steady cruising conditions rather than during idle or full acceleration.
Signs of a failing EGR valve include rough idling, engine knocking, increased fuel consumption, and of course, the check engine light. A clogged EGR valve can also cause stalling, hesitation during acceleration, and in some cases, a failed emissions test.
4) Catalytic Converter
The catalytic converter is one of the most important emissions control devices in your vehicle. Located between the exhaust manifold and muffler, this component transforms harmful pollutants into less harmful substances before they exit your tailpipe.
Inside the converter, precious metals like platinum, palladium, and rhodium act as catalysts. When hot exhaust gases pass through, these catalysts trigger chemical reactions that convert carbon monoxide into carbon dioxide, nitrogen oxides into nitrogen and oxygen, and hydrocarbons into carbon dioxide and water.
Unfortunately, catalytic converters have become a target for thieves due to the valuable metals inside. A failing converter will often trigger a check engine light, reduce engine performance, and cause your vehicle to fail emissions tests. You might also notice a rotten egg smell, excessive heat under the vehicle, or a rattling noise from loose internal components.
Replacing a catalytic converter is NOT cheap so don’t automatically assume it has failed. In some cases, the internals of the cat simply get clogged up and it may be possible to perform a DIY cleaning to restore its function (especially with minor clogging).
Related: 10 Best Catalytic Converter Cleaners (That Actually Work)
5) Exhaust Pipes
Exhaust pipes are the highway system of your exhaust, connecting all the major components from the manifold to the tailpipe. These tubes are typically made from aluminized steel or stainless steel and are designed to withstand extreme heat, vibration, and corrosion.
The primary function of exhaust pipes is to channel exhaust gases through the system while maintaining proper backpressure for optimal engine performance. They also help in cooling the exhaust gases as they travel from the engine to the tailpipe.
Common problems with exhaust pipes include rust and corrosion (especially in areas that use road salt), physical damage from road debris, and leaking joints or connections. When a pipe develops a hole or crack, you’ll often notice an increase in exhaust noise, reduced fuel economy, and potentially dangerous exhaust fumes entering the cabin.

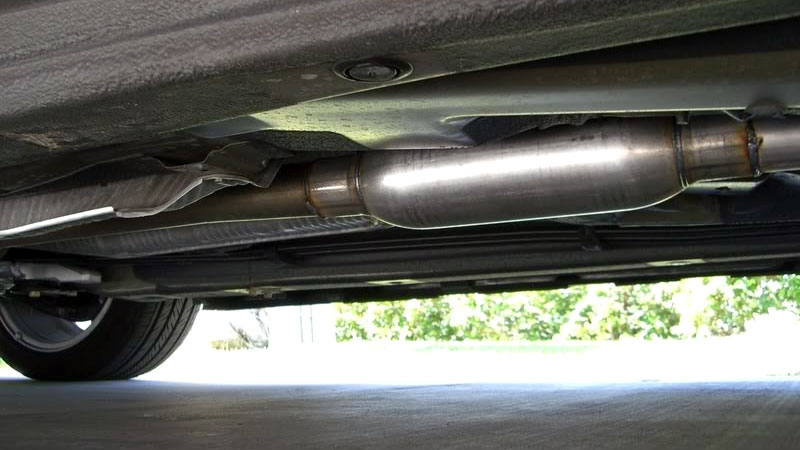

6) Resonator
The resonator works in tandem with the muffler to reduce exhaust noise. Typically located between the catalytic converter and the muffler, this hollow chamber is designed to cancel out specific sound frequencies that cause unpleasant droning or booming inside the cabin.
Unlike the muffler, which handles a wide range of sound frequencies, resonators target specific tones by creating sound waves that cancel out unwanted noise. They reduce the amount of noise created by exhaust pulses (those waves generated when high-pressure engine air meets low-pressure ambient air).
A failing resonator usually doesn’t affect performance, but you’ll notice an increase in exhaust noise, particularly at certain engine speeds. Some drivers deliberately remove resonators when installing aftermarket exhaust systems to create a more aggressive sound, but this often results in an annoying drone at highway speeds.
7) Muffler
The muffler is the sound-dampening hero of your exhaust system. This seemingly plain metal box contains a series of intricate chambers, baffles, and perforated tubes that work together to quiet your engine’s roar to a socially acceptable level.
When exhaust gases enter the muffler, they’re forced through these complex pathways that cause the sound waves to bounce around and cancel each other out. This design reduces the engine’s overall volume and takes the edge off the raspy tone, making your exhaust noise tolerable (and legal in many states).
A failing muffler will announce itself with increased noise, which can be anything from a subtle rumble to an ear-splitting roar. Other symptoms include visible rust, condensation dripping from the exhaust, and decreased fuel economy. In extreme cases, rust or damage can cause a hole in the muffler to be created that comes with various side effects.
8) Exhaust Tips (Tailpipe)
Exhaust tips are the visible end pieces of your exhaust system, attached to the final section of pipe (the tailpipe) that directs gases away from your vehicle. While the tailpipe’s primary function is to expel those somewhat toxic gases safely away from the vehicle, the tip that caps it often serves both aesthetic and functional purposes.
Many drivers customize their exhaust tips to enhance their vehicle’s appearance, with options ranging from chrome-plated steel to polished stainless steel, carbon fiber, or titanium.
Some enthusiasts opt for oversized “coffee can” style tips that create a more aggressive appearance and often a louder, deeper tone. This makes it perfect for those who want their little 4-cylinder to sound like a fighter jet at 2 AM in residential neighborhoods
Beyond looks, different tip designs can subtly alter exhaust tone or even provide marginal performance benefits through optimized airflow. Some tips are angled downward to direct exhaust toward the ground, while others are turned outward for a sportier appearance.
Problems with this final exhaust section typically involve rust, physical damage, or disconnection from the muffler. A damaged tailpipe or tip will result in increased noise and possibly allow exhaust fumes to enter the cabin through openings in the undercarriage.
9) Hangers and Brackets
Hangers and brackets are the unsung heroes of your exhaust system. These rubber and metal components suspend the entire exhaust system beneath your vehicle, isolating it from the chassis to prevent vibration transfer and noise.
Most hangers consist of metal hooks connected to rubber isolators that allow the exhaust system to move slightly as it expands and contracts with temperature changes. Without proper hangers, your exhaust components would sag, potentially causing damage from road contact or stress on connection points.
Failed exhaust hangers are typically noticed as increased exhaust noise, rattling, or scraping sounds when driving over bumps. You might also notice visible sagging of exhaust components when looking underneath your vehicle.
Fortunately, hangers are among the easiest and least expensive exhaust components to replace. But they sure are a major annoyance when they fail.
10) Diesel Particulate Filter (DPF)
For diesel vehicles, the Diesel Particulate Filter is a critical emissions control device. Located after the catalytic converter, the DPF captures and stores soot particles from the exhaust stream, preventing them from being released into the atmosphere.
Once the filter reaches a certain saturation point, the vehicle initiates a regeneration process that burns off accumulated soot at very high temperatures. This process happens automatically during normal driving conditions, typically every few hundred miles.
Warning signs of DPF problems include reduced fuel economy, decreased power, illuminated warning lights, and in severe cases, the vehicle entering “limp mode.” Regular highway driving helps maintain DPF health by allowing the system to reach temperatures needed for regeneration. Vehicles used mainly for short trips are more prone to DPF issues due to insufficient regeneration opportunities.
